Oliver Valve 3 Valve Manifold

Oliver Valve Logo

Oliver Valve 'Y34' Type 3 valve manifold is designed for direct mounting to differential pressure transmitters, with separate isolation for LP and HP inlets plus equalising valve for simple calibration. Each needle valve head is designed for safe and reliable isolation, giving bubble tight shut off, with non-rotating & antigalling tip and dynamic self-adjusting spindle seal to give long service life in a variety of service conditions.

We typically keep 3 valve manifolds in stock.

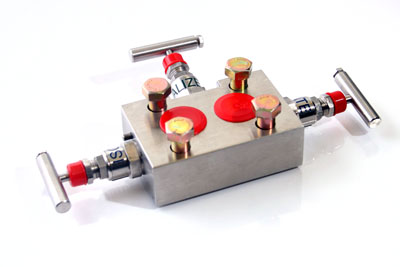

3valve manifold

Key Features


- Non rotating tip - self centering & anti-galling
- Piston ring - gives dynamic adjustment of gland seal in response to pressure change
- Anti-blow out spindle - a major safety feature
- Secure seal - precision machined to give leak free operation for the life of the valve. Available
in either PTFE or Grafoil



Standard Specification


Pressure: 6000psi
Temp: 240 deg C
Packing: PTFE
Seat: Metal to Metal
Handle: T-Bar
Bore: 0.21" (5.4mm)
CV: 0.46
Connections: 1/2" Inlets
Supplied with 4x M10 bolts (7/16"UNF also available) and 2x PTFE/Grafoil seal rings



send-us-enquiry-button

Download Listing

3 Downloads

3 Valve manifold y34 datasheet (98 KB)
5 Valve manifold y53 datasheet (119 KB)
Needle Isolating Valve F50S Datasheet (80 KB)
