Fuji Electric PXR Temperature Controllers


Digital PID Temperature Controllers by Fuji Electric


Fuji Electric PXR series of controller is packed with features, to meet a wide variety of needs in the process industries.

Low-cost and ultra reliable it is also very flexible with a wide range of options to fit any temperature control application.
pxr series temperature controllers


competitive
Competitive Prices. Fuji Electric economy of scale allow us to supply this ultra reliable controller at the best price.
delivery
Delivery: Ex stock. We keep hundreds of controllers in stock to be able to supply against most requirements on an urgent basis.
input type
Input type: Thermocouple (type J,K,R,B,S,T,E,N,PLII) , RTD Pt100, Voltage (1-5V) or Current (4-20mA)
output type
Output type: Relay contact, SSR drive (Solid State Relay), Voltage (1-5V) or Current (4-20mA).
large display

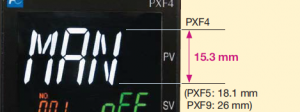

Large LED display. Larger than any other 1/16 DIN controller on the market
ip66 waterproofIP66 Waterproof. As standard, the faceplate, designed for NEMA 4X (IP66 equivalent), is watertight and corrosion-resistant.
fuzzy logicOn/off control, PID with auto-tune & Fuzzy logic control selectable as standard. Fuzzy logic control eliminates overshoot & reduces external disturbance
ramp soak program
Ramp Soak. Program your heat pattern via the front panel
alarm functionsAlarms. Sixteen types of alarm with one or two relay contact outputs
manual operation
Easy operation. Change the parameters easily via the front panel by following Fuji Electric intuitive Block system. Manual Operation is available as standard.
rs485 communication
Flexible. Many options are available: RS485, Heating/cooling, remote set point, digital inputs, 24Vdc power supply...
11pin din rail
Replace your old Fuji Controller. The PXR is available socket type (8 pin or 11pin) and is fit and function identical or improved. Advise your old part number, we supply a new replacement, plug it: it works.


The controller has all the standard features that you expect from Fuji Electric's superior controllers, and more. In addition to auto-tuning and fuzzy logic control, it now comes with PID self-tuning — an innovation in the control field. It automatically retunes the controller under certain conditions, without the need to revert to auto-tuning.

The standard 8-segment ramp/soak feature has been expanded to include two patterns that can be linked to create a 16-step profile. The PXR4 accepts temperature and process inputs, and offers two control outputs and two programmable alarms.

Remote monitoring of up to 31 controllers at a time is possible with the RS485 option that uses the industry-standard Modbus™ protocol. The purchase of a PXR4 with PC-communications includes the free Windows®-based software, PXR-LITE™.

You can easily set up your RS485 enabled controller with the new program configuration loader option with Windows®-based software. Programs for different applications can be saved to and from the controller. Call for more details.

Fuji Electric's PXR PID controller can be used for various application, from high temperature furnaces to Espresso Machines temperature control.
controller_enquiry

For technical information, see brochures and datasheet below.


See also

Process

For more demanding applications when a fast response and advanced options are required.

pxh process controller sub

Controllers Comparison

Compare features and benefits of our range of temperature / process controller.
controllers comparison


Sales Brochures

PXR series Colour Brochure and Datasheets (1612 Kb)
PXR3 (1/32 DIN) Brochure (1063 Kb)

Datasheets

PXR series Colour Brochure and Datasheets (1612 Kb)
PXR4 Socket Type Datasheet (396 Kb)

Instruction Manuals

PXR4 Instruction Manual (2134 Kb)
PXR 4, 5 and 9 Operation Manual (1629 Kb)

Software

2 Downloads

Fuji PXR/PXG Parameter Loader Software (2442 Kb)
Fuji PXR - PXR Lite Software (1190 Kb)

Price Lists
