ATEX Ex-ia and Exd Pressure Transmitters


When Pressure Transmitters and differential pressure transmitters are installed in Hazardous Areas it is essential that they are approved by one the required approval Authorities and have been designed and certified to operate using a recognnised protection concept. "Intrinsically safe" or "explosion proof" (Ex-ia, Exd...) are two of the most common.

In addition it is important to understand the global differences, as local aproval authorities use their own classification criteria.  At Coulton Instrumentation our engineers can help you to find the right device for your process.  Whether you need ATEX, ,IECEx, FM, LCIE, GOST, or CSA approvals with Ex-ia, Exd, Exn or dual certification we will find the pressure transmitter you need.

Fuji Electric ATEX Exd and Ex-ia Pressure Transmitters



Specifications:


Fuji Electric Pressure Transmitters can be used in various applications in industry fields such as petrochemical, chemical, energy, iron industry,
food industry and water treatment.

Hazardous Location Authorities:

  • ATEX
  • CSA
  • IECEx

ATEX Ex Logo

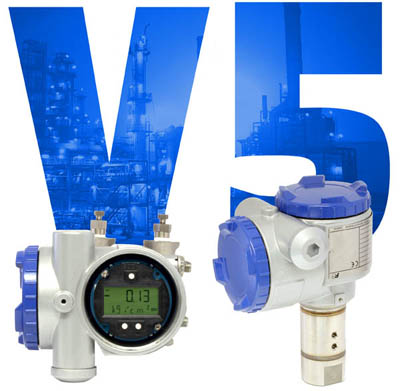

FCX-Aii_V5_series





send_us_an_enquiry


Hazardous Location certification for Fuji FKC Differential Pressure Transmitter:

Authority
(Digit 10= )

Intrinsic safety

ATEX (K)

Ex II 1 G
Ex ia IIC T5 (-40°C ≤ Ta ≤ +50 °C)
Ex ia IIC T4 (-40°C ≤ Ta ≤ +70 °C)
IP66/67


Entity Parameters:
Ui ≤ 28 Vdc, Ii ≤ 94.3 mA, Pi ≤ 0.66 W
Ci = 36 nF/26 nF for models with/without Arrester
Li = 0.7 mH/0.6 mH for models with/without Analog Indicator



Factory Mutual
(H)

Class I II III
Div.1 Groups A, B, C, D, E, F, G
T4 Entity Type 4X
Entity Parameters:
Vmax=42.4V, Imax=113mA, Pi=1W,
Ci=35.98nF, Li=0.694mH



CSA (J)

Ex ia Class I, Groups A, B, C and D;
Class II, Groups E,F and G; Class III
Per drawing TC 522873
Temp. code T5 for Tamb max = +50°C
Temp. code T4 for Tamb max = +70°C
Entity Parameters:
Vmax = 28 Vdc, Imax = 94.3 mA, Pmax = 0.66 W
Ci = 36 nF/25 nF for models with/without Arrester
Li = 0.7 mH/0.6 mH for models with/without Analog Indicator



IECEx (T)

Ex ia IIC T5 (-40°C ≤ Ta ≤+50 °C)
Ex ia IIC T4 (-40°C ≤ Ta ≤+70 °C)
IP66/67
Entity Parameters:
Ui ≤ 28 Vdc, Ii ≤ 94.3 mA, Pi ≤ 0.66 W
Ci = 36 nF/26 nF for models with/without Arrester
Li = 0.7 mH/0.6 mH for models with/without Analog Indicator



Authority
(Digit 10= )

Type n
Nonincendive

ATEX
(P)

Ex II 3 G
Ex nA II T5 (-40°C ≤ Ta ≤+70 °C)
IP66/67
Electrical ratings
Model Without arrester:
Ui ≤ 45 Vdc, 4-20 mA loop powered, Pi ≤ 1.0125 W
Model With arrester:
Ui ≤ 32 Vdc, 4-20 mA loop powered, Pi ≤ 1.0125 W
Optional Analog indicator is not available for type "n"

Factory
Mutual
(H)

Class I II III
Div.2 Groups A, B, C, D, F, G
T4 Entity Type 4X

CSA
(J)

Class I
Div.2 Groups A, B, C, D
Class II
Div.2 Groups E, F, G
Class III
Div.2
Temp Code T5 Tamb max = +50°C
Temp Code T4 Tamb max = +70°C
Entity Parameters:
Vmax = 28 Vdc, Imax = 94.3 mA, Pmax = 0.66 W
Ci = 36 nF/25 nF for models with/without Arrester
Li = 0.7 mH/0.6 mH for models with/without Analog Indicator



IECEx
(Q)

Ex nA II T5 (-40°C ≤ Ta ≤+70 °C)
IP66/67
Electrical ratings
Model Without arrester:
Ui ≤ 45 Vdc, 4-20 mA loop powered, Pi ≤ 1.0125 W
Model With arrester:
Ui ≤ 32 Vdc, 4-20 mA loop powered, Pi ≤ 1.0125 W
Optional Analog indicator is not available for type "n"



Authority

Flameproof

ATEX
(X)

Ex II 2 GD
Ex d IIC T6 (-40°C ≤ Ta ≤ +65 °C)
Ex d IIC T5 (-40°C ≤ Ta ≤ +85 °C)
Ex tD A21 IP66/67 T 85°C
Ex tD A21 IP66/67 T 100°C
Electrical ratings
Model Without arrester:
Ui ≤ 45 Vdc, 4-20 mA loop powered, Pi ≤ 1.0125 W
Model With arrester:
Ui ≤ 32 Vdc, 4-20 mA loop powered, Pi ≤ 1.0125 W


Factory
Mutual
(D)

Class I
Div.1 Groups B, C, D
T6 Type 4X
Class II III
Div.1 Groups E, F, G
T6 Type 4X
Tamb max = +60°C



CSA
(E)

Class I, Groups C and D;
Class II, Groups E,F and G ; Class III
Maximum ambient temperature 85°C
Maximum working pressure 50 Mpa
Electrical ratings
Model Without arrester:
Ui ≤ 45 Vdc, 4-20 mA
Model With arrester:
Ui ≤ 32 Vdc, 4-20 mA
Note: "Seal not required"



IECEx
(R)

Ex d IIC T6 (-40°C ≤ Ta ≤ +65 °C)
Ex d IIC T5 (-40°C ≤ Ta ≤ +85 °C)
DIP A21 IP66/67 T 85°C
DIP A21 IP66/67 T 100°C
Electrical ratings
Model Without arrester:
Ui ≤ 45 Vdc, 4-20 mA loop powered, Pi ≤ 1.0125 W
Model With arrester:
Ui ≤ 32 Vdc, 4-20 mA loop powered, Pi ≤ 1.0125 W



Please do not hesiate to contact us for more information!

send_us_an_enquiry
